Channels Summary [Tab 1]

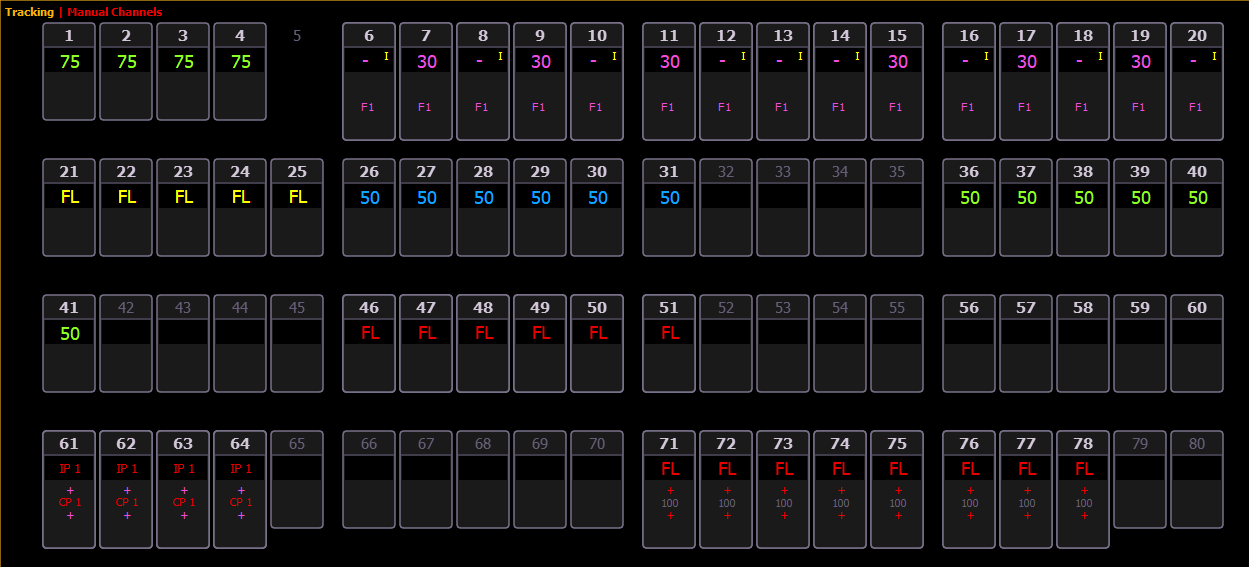

The summary view displays the largest number of channels of any of the formats. This format is best used to see large numbers of channels’ intensity data and / or parameter category data. Individual parameters are not visible in this view.

FCB icons will appear at the bottom of the channel area for channels that have those parameters patched to them. See Indicators in the Live / Blind Display.

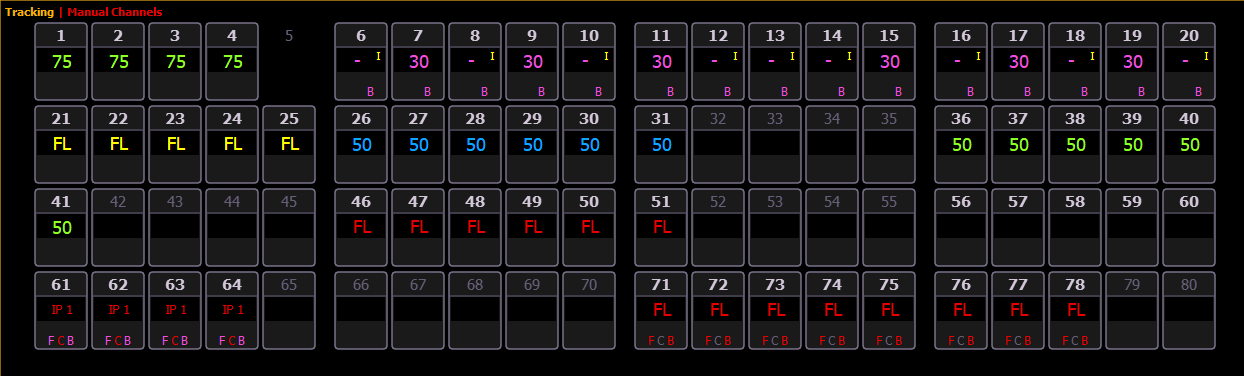

To collapse the summary view, hold down the [Data] or [Params] key and press any parameter category key. On Element 2, Ion Classic, and Element Classic, you will need to use [Data].

When the summary view has been collapsed to show only intensity data, you may include focus, color, or beam data in the summary view by holding down [Data] or [Params] and pressing any parameter category key to display all categories again.
